Home / Products / Epoxy Injection Resin

Epoxy Injection Resin

High-strength two-component epoxy resin for structural crack bonding and load-transfer repair.

Structural BondHigh StrengthLow ViscosityTwo-Component
BOND> Concrete
VISCOSITYLow (200 mPa·s)
POT LIFE30–60 min
SHELF LIFE24 months
Free Site Survey →
↓ Download Datasheet (PDF)

Overview

Re-monolithizes concrete. Stronger than the original.

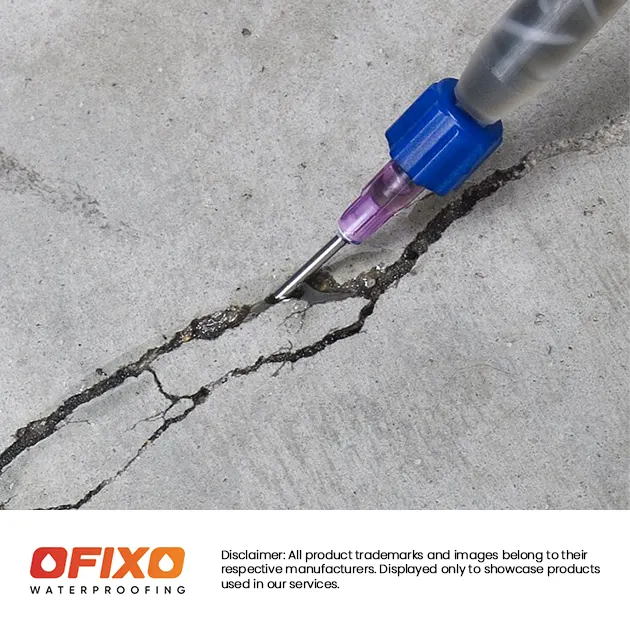

Epoxy Injection Resin is a two-component low-viscosity epoxy injection resin engineered for structural repair of dormant cracks in concrete. Penetrating cracks down to 0.1 mm, it cures to a hardness exceeding the parent concrete – restoring monolithic load transfer across the crack and eliminating it as a structural discontinuity.

Specified for static (non-moving) structural cracks. Not suitable for active or wet/leaking cracks – use polyurethane injection foam in those conditions.

Key Features

  • Bond strength exceeds parent concrete tensile capacity
  • Penetrates cracks down to 0.1 mm
  • Two-component – controlled pot life and full cure
  • Solvent-free, 100% solids
  • Re-monolithizes structural elements
  • Compatible with low-pressure or high-pressure injection

Technical Specs

Technical Specifications

All values measured at 23°C unless noted. Full test data available in the datasheet.

PropertyValueUnit
FormTwo-component (A + B) liquid–
Mix ratio (by volume)2 : 1–
ColourClear / amber–
Mixed viscosity200–300mPa·s
Density (mixed)1.10 ± 0.05g/cm³
Pot life at 25°C30–60minutes
Initial cure12hours
Full cure7days
Compressive strength≥ 80MPa
Flexural strength≥ 50MPa
Tensile strength≥ 40MPa
Bond to concreteConcrete failure–
Penetration capacityCracks ≥ 0.1 mm–
StandardsASTM C881 · EN 1504-5–

Applications

Where this product is used

Five typical site applications where our crews specify this product.

🏗️

Structural crack repair

Re-monolithizing static cracks in columns, beams, and slabs.

🌉

Bridge structures

Structural repair of cracks in bridge beams and decks.

🏢

High-rise buildings

Crack repair in load-bearing structural elements.

🧱

Concrete delamination

Re-bonding of delaminated concrete sections.

🛣️

Industrial floors

Structural repair of cracked industrial floor slabs.
