Home / Products / CFRP Strengthening Fabric

CFRP Strengthening Fabric

Unidirectional carbon fibre reinforcement fabric for externally bonded structural strengthening of beams, columns, and slabs.

3300 MPa TensileUnidirectionalEN 1504-410× Steel Strength
AREAL WEIGHT200–600 g/m²
TENSILE≥ 3300 MPa
E-MODULUS≥ 230 GPa
SHELF LIFE60 months
Free Site Survey →
↓ Download Datasheet (PDF)

Overview

High-strength carbon. Engineered for retrofit.

CFRP Strengthening Fabric is the unidirectional carbon-fibre reinforcement specified for externally bonded reinforcement (EBR) of concrete, masonry, and timber structures. Tensile strength exceeds 3300 MPa — roughly ten times that of structural steel at a fraction of the dead-load impact.

Installed via wet lay-up with structural saturating epoxy. Supplied in 200–600 g/m² areal weights and 300 / 500 mm roll widths to match engineer-of-record specifications under EN 1504-4 and ACI 440.2R.

Key Features

  • Tensile strength ≥ 3300 MPa
  • Modulus of elasticity ≥ 230 GPa
  • Light weight — minimal added dead load
  • Corrosion-immune — does not rust like steel
  • Thin profile — does not reduce headroom
  • Wet lay-up with structural saturating epoxy

Technical Specs

Technical Specifications

All values measured at 23°C unless noted. Full test data available in the datasheet.

PropertyValueUnit
FormUnidirectional dry carbon fiber fabric—
Fiber typePAN carbon—
Areal weight options200 / 300 / 400 / 600g/m²
Roll width300 / 500mm
Fiber density1.80 ± 0.05g/cm³
Tensile strength (fiber)≥ 4900MPa
Tensile strength (design)≥ 3300MPa
Modulus of elasticity≥ 230GPa
Elongation at break≥ 1.5%
Nominal thickness (200 g/m²)0.111mm
Nominal thickness (300 g/m²)0.167mm
Roll length50m
ApplicationWet lay-up—
StandardsEN 1504-4 · ACI 440.2R—

Applications

Where CFRP Strengthening Fabric is used

Six typical site applications where our crews specify this product.

🏗️

Beam strengthening

Flexural and shear strengthening of concrete beams.

🏛️

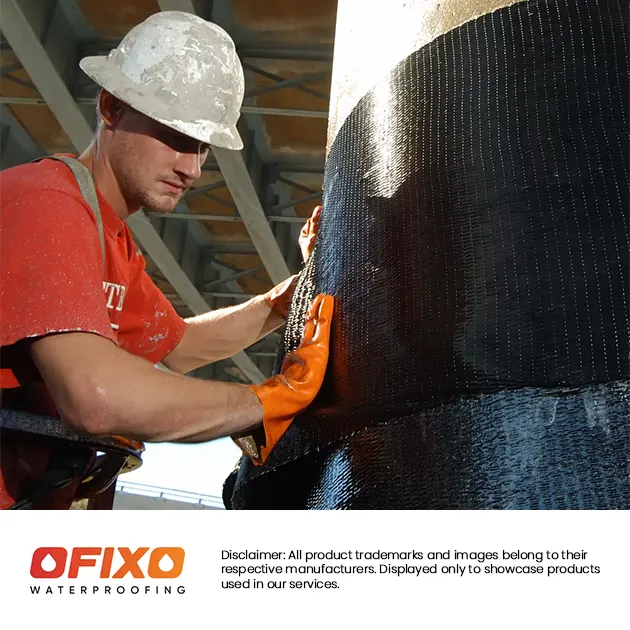

Column confinement

Axial confinement and seismic upgrade of columns.

🌉

Bridge upgrades

Live-load capacity upgrade for bridge structures.

⬆️

Slab strengthening

Punching shear and flexural strengthening of slabs.

🧱

Masonry retrofits

Out-of-plane strengthening of unreinforced masonry walls.

🚧

Change-of-use

Capacity upgrades for change-of-use conversions.
