Bentonite Waterstop Strip

Sodium bentonite waterstop strip for below-grade construction joints and pile head waterproofing.

Natural ClayHigh SwellBelow-GradeSimple Fix
SWELLINGUp to 1500%
CROSS-SECTION20×25 mm
FIXAdhesive or nail
SHELF LIFE24 months
Free Site Survey →
↓ Download Datasheet (PDF)

Overview

Natural clay technology. Permanent below-grade seal.

Bentonite Waterstop Strip combines high-swell natural sodium bentonite clay with a butyl rubber binder. When wetted by groundwater, the bentonite swells dramatically (up to 1500%), forming a dense impermeable gel that fills voids and seals construction joints permanently.

Particularly effective for below-grade applications where the strip remains permanently in contact with groundwater. Standard specification on pile head waterproofing and below-grade construction joints.

Key Features

  • Sodium bentonite – proven 100+ year service life
  • Swelling capacity up to 1500% by volume
  • Self-sealing around steel reinforcement

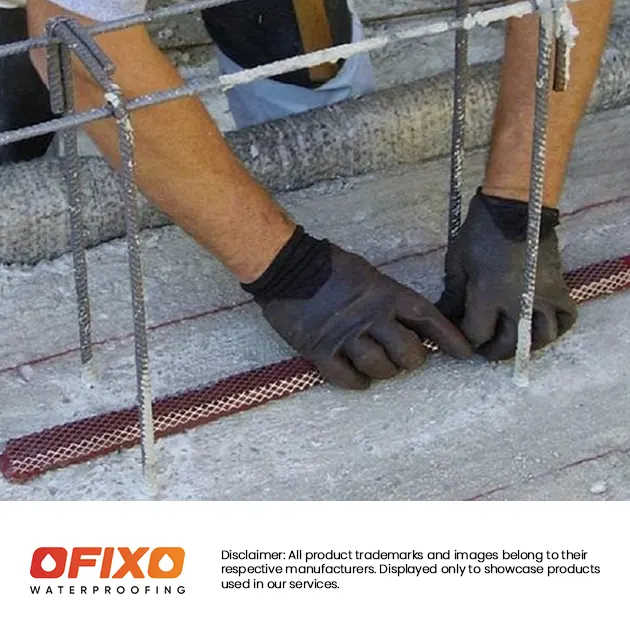

  • Simple installation with adhesive or concrete nails
  • Permanent below-grade sealing
  • Compatible with most concrete admixtures

Technical Specs

Technical Specifications

All values measured at 23°C unless noted. Full test data available in the datasheet.

PropertyValueUnit
FormStrip – bentonite + butyl binder–
CompositionSodium bentonite + butyl rubber–
ColourGrey-brown–
Cross-section20 × 25mm
Density1.50 ± 0.05g/cm³
Swelling capacityUp to 1500%
Swelling time (full)72–96hours
Permeability after swell≤ 1×10⁻⁹m/s
Hydrostatic resistanceUp to 7bar
Service temperature−10 to +60°C
ApplicationAdhesive / mechanical fix–
Substrate conditionClean, dry concrete–
Packaging5 m strips, 30 m carton–
StandardsASTM D5887 · BS 1377-7–

Applications

Where this product is used

Five typical site applications where our crews specify this product.

🏗️

Pile head waterproofing

Sealing pile head to base slab connections.

🏠

Foundation joints

Foundation pour joint sealing.

🌉

Retaining wall joints

Earth-retaining wall construction joint waterproofing.

🚇

Underground structures

Cut-and-cover tunnel and chamber joint sealing.

💧

Buried tanks

Cast-in-situ buried tank construction joint sealing.
